120W LED Street Lights

Location:Index--->Product Center >> LED Street Lights >> 120W LED Street Lights

Name:	120W LED Street Lights
Input	AC100-277V, 50Hz-60Hz
LED	Philips 3030LED
Driver	Meanwell
CCT	2700K-3500K, 4500K-5500K, 6000K-7000K
Color index	Ra70
Lead time	7-12ays
Warranty	5 years

Product Detail

120W LED Street Light

Prime 150W 120W LED street light fixture with Philips 3030 LEDs as lighting source and Meanwell LED driver, 130-140LPW, is designed for both new installation and facilities currently using HID cobra head style fixtures. These commercial/outdoor LED street light offers outstanding long-life reliability to dramatically reduce energy and maintenance costs.

Standard equipped with a 68 mm pole connector, IP65

High-grade aluminum alloy A360 housing with high-durability powder coating

Adjustable holder

Specail designed optics maximize light distribution and placement with exceptional, low-glare illumination on the intended area, while minimizing light trespass into nearby homes and businesses.

IESNA TYPE II

Optimised for ME and S road classes and narrow roads

Pole height 4-6m, pole spacing from 20-30m (S classes), and height from 7-12m, spacing from 30-40m (ME classes)

IESNA TYPE III

Optimised for ME road classes and wider roads

Pole height from 7-12m, pole spacing from 25-45m

Sensor swithch is also available, if needed.

Light ON when night comes and OFF when morning comes.

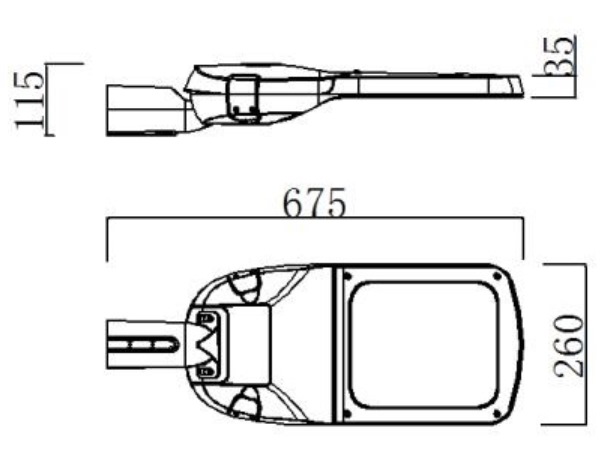

Demansion of 120W 150w led street lamp

Details of the led roadway lighting

Item	150W 120W LED Street Light
Operating Voltage	AC100-277V
Driver	Meanwell XLG
LED	Philips 3030LED
Qty	192pcs
LED Luminous Efficiency	130-140lm/w
Initial Luminous Flux	15,600-16,800LM
CRI	Ra> 70
CCT	3000/4000/5000/6000K
Operating Temperature	-40ºC to 50ºC
Operating Humidity	10%~90%RH
Power Factor (PF)	> 0.95
Driver Efficiency	> 90%
IP Rating	IP65
Guarantee	5 Years Warranty
Heat part	Aluminum alloy
Fixture size	598257.193mm
Packing size	54.230.216cm
Fixture Weight	6.6kg

It can be used for parking lots, streets or roads, driveways, area lighting, municipal areas, commercial areas, security or showcase lighting fixtures.
