100W LED Street Lights

Location:Index--->Product Center >> LED Street Lights >> 100W LED Street Lights

Name:100W LED Street Lights
InputAC100-277V, 50Hz-60Hz
LEDPhilips 3030LED
DriverMeanwell
CCT2700K-3500K, 4500K-5500K, 6000K-7000K
Color indexRa70
Lead time7-12ays
Warranty5 years

Product Detail

100W LED Street Lights

Prime 60w 70W 80W 100W LED street light fixture with Philips 3030 LEDs as lighting source and Meanwell LED driver, 130-140LPW, is designed for both new installation and facilities currently using HID cobra head style fixtures. These commercial/outdoor LED street light offers outstanding long-life reliability to dramatically reduce energy and maintenance costs.



Standard equipped with a 68 mm pole connector, IP65

High-grade aluminum alloy A360 housing with high-durability powder coating



Adjustable holder

Specail designed optics maximize light distribution and placement with exceptional, low-glare illumination on the intended area, while minimizing light trespass into nearby homes and businesses.

IESNA TYPE II

Optimised for ME and S road classes and narrow roads

Pole height 4-6m, pole spacing from 20-30m (S classes), and height from 7-12m, spacing from 30-40m (ME classes)



IESNA TYPE III

Optimised for ME road classes and wider roads

Pole height from 7-12m, pole spacing from 25-45m



Sensor swithch is also available, if needed.

Light ON when night comes and OFF when morning comes.

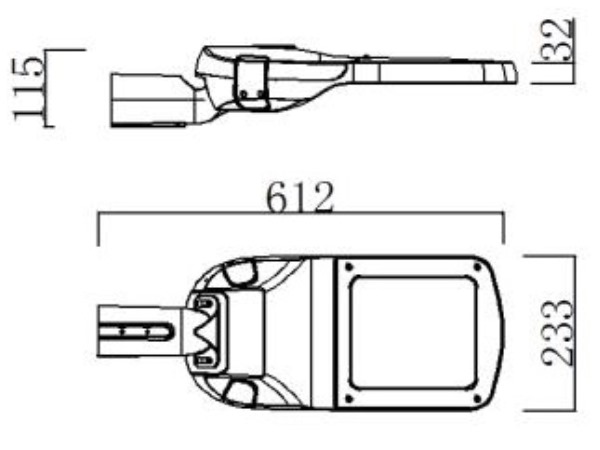

Demansion of 60w 70w 80w 100w led street lamp

Details of the led roadway lighting

Item

100W LED Street Light Fixture

Operating Voltage

AC100-277V

Driver

Meanwell XLG

LED

Philips 3030LED

Qty

144pcs

LED Luminous Efficiency

130-140lm/w

Initial Luminous Flux

13,000-14,000LM

CRI

Ra> 70

CCT

3000/4000/5000/6000K

Operating Temperature

-40ºC to 50ºC

Operating Humidity

10%~90%RH

Power Factor (PF)

> 0.95

Driver Efficiency

> 90%

IP Rating

IP65

Guarantee

5 Years Warranty

Heat part

Aluminum alloy

Fixture size

612*233*115mm

Packing size

66*28*13.5cm

Fixture Weight

5.6kg

It can be used for parking lots, streets or roads, driveways, area lighting, municipal areas, commercial areas, security or showcase lighting fixtures.
