100W 150W 200W UFO LED HIGH BAY LIGHTS

Location:Index--->Product Center >> UFO LED High Bay Light >> 100W 150W 200W UFO LED HIGH BAY LIGHTS

Name:100W 150W 200W UFO LED HIGH BAY LIGHTS
Input100-277V
LEDPhilips 2835 SMD
Efficiency150LM/W
DriverMeanwell
Warranty5 years
CertificatesCE RoHS
Lead Time7-15days

Product Detail

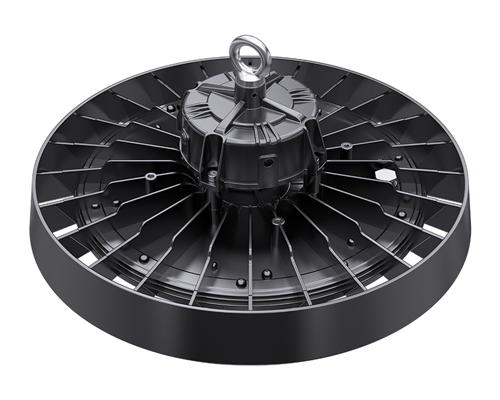

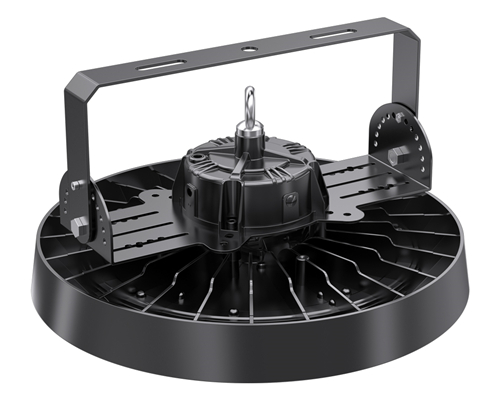

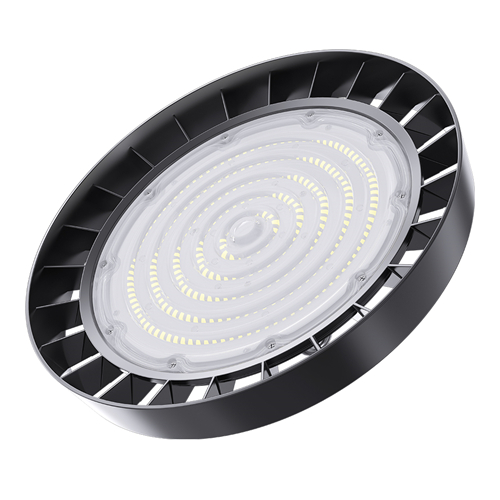

100W 150W 200W UFO LED HIGH BAY LIGHTS

UFO LED high bay lights are welcomed as general lighting, as small size and high output, and most important is that, they are supplied at much lower costs compared with the commone type LED high bay fixtures. 100W 150W 200W UFO LED HIGH BAY LIGHTS comes with Philips 3030 LED as lighting source and CE or TUV LED driver, as replacement of metal lamp or High Pressure Sodium. They are ideal repalcement of MH / HPS in Large commercial properties, Warehouses,Sports fields, Factory,arenas and so on.

3000k 4000K 5000K and 6000K, optional

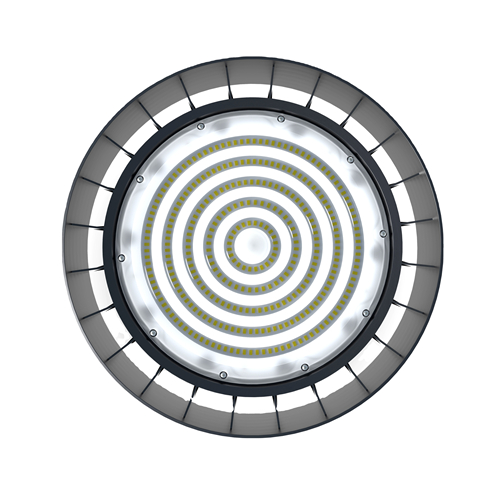

Die-casting intergrative housing and 2.0 thermal conductivity coefficient PCB

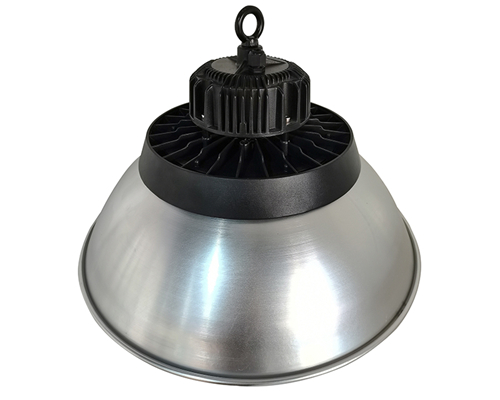

Reflectors are also available if needed

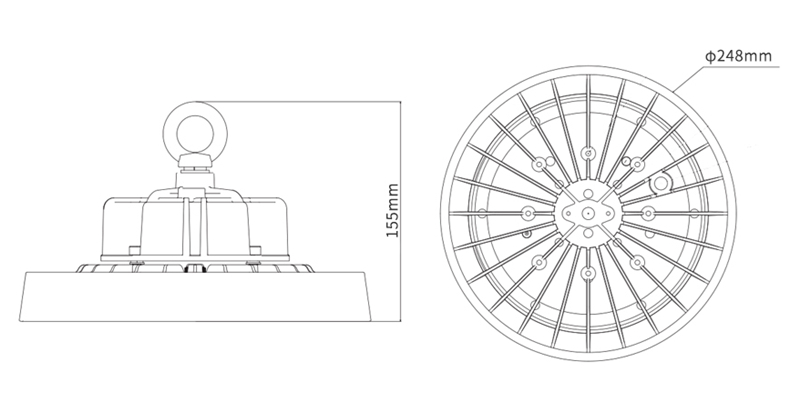

Size of 100W UFO LED High Bay Light

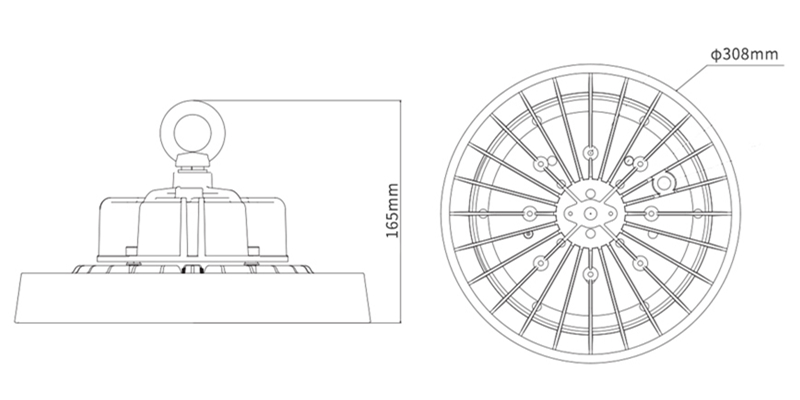

Size of 150W UFO LED High Bay Light

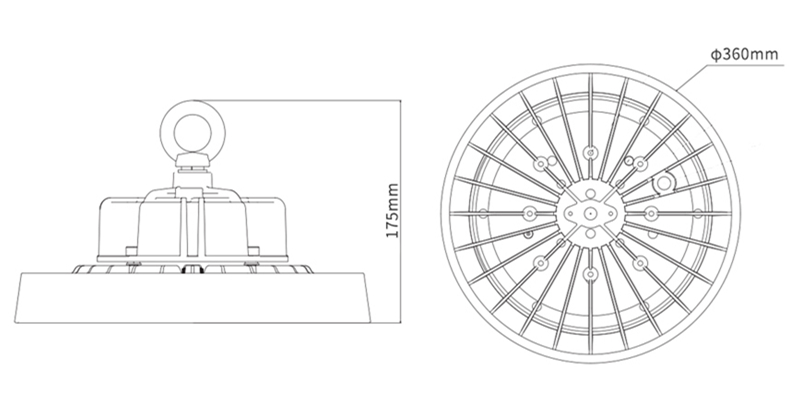

Size of 200W UFO LED High Bay Light

Item

100W 150W 200W UFO LED HIGH BAY LIGHTS

Operating Voltage

AC100-277V

LED

Philips 2835 SMD

LED Luminous Efficiency

150LM/W

CRI

Ra> 80

CCT

3000/4000/5000/6000K

Beam angle

60/ 90/ 120deg.

Harmonic distortion

<20% (10% typical)

Operating Temperature

-40ºC to 50ºC

Operating Humidity

10%~90%RH

Power Factor (PF)

> 0.95

Driver Efficiency

> 90%

IP Rating

IP65

Guarantee

5 Years Warranty

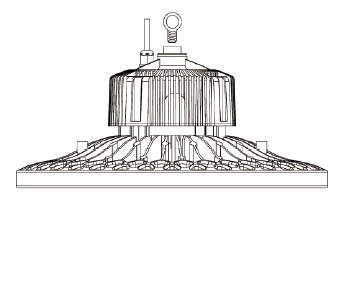

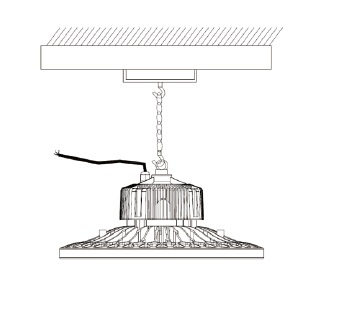

How to install UFO LED High Bay Light?

1. Screw the hook into power supply box, tightly.

2. Pendent chain through hook and lock, then hang the light to ceiling.

Connect the blue and brown line to main supply, and yellow-green lind to ground earth.

Then Done.

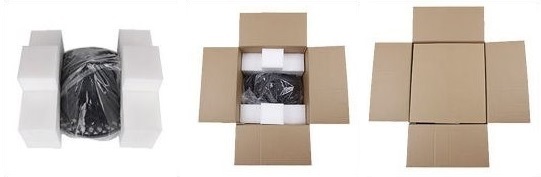

Packing with One high bay in one box, then in K=K carton
