100W UFO LED High Bay Light

Location:Index--->Product Center >> UFO LED High Bay Light >> 100W UFO LED High Bay Light

Name:100W UFO LED High Bay Light
Place of Origin:Guangdong,China
Input:AC100-277V, 50Hz-60Hz
LED:Philips 3030
Warranty:3 years with CE driver
Warranty:5 years with TUV&SAA driver
Price Term:EXW, FOB
Payment By:T/T, Paypal, WU
Delivery Date:7-12days
Packing:Neutral

Product Detail

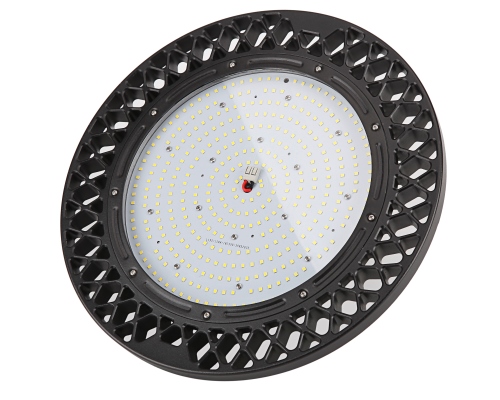

100W UFO LED High Bay Light

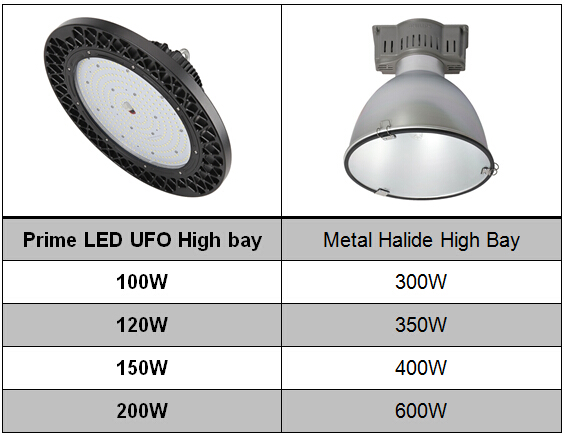

UFO LED high bay lights are welcomed as general lighting, as small size and high output, and most important is that, they are supplied at much lower costs compared with the commone type LED high bay fixtures. 100W UFO LED high bay light comes with 200pcs Philips 3030 LED as lighting source and CE or TUV LED driver, as replacement of 300W metal lamp or High Pressure Sodium with 13,000LM output, They are ideal repalcement of MH / HPS in Large commercial properties, Warehouses,Sports fields, Factory,arenas and so on.

4000K 5000K and 6000K, optional

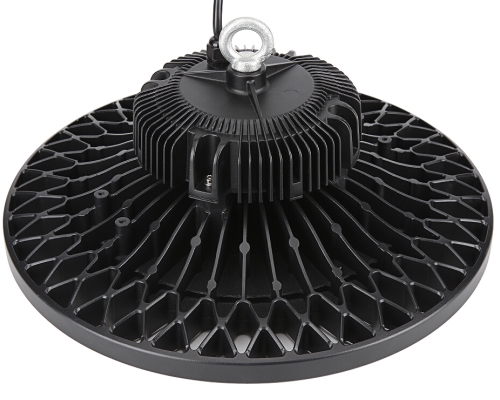

Die-casting intergrative housing and 2.0 thermal conductivity coefficient PCB

Size of 100W UFO LED High Bay Light

Item 100W UFO LED High Bay Light
Operating Voltage AC100-277V
Initial Luminous Flux 13,000LM
Maintain Luminous Flux 12,800LM
LED Luminous Efficiency 125-130lm/w
CRI Ra> 80
CCT 4000/5000/6000K
Operating Temperature -40ºC to 50ºC
Operating Humidity 10%~90%RH
Power Factor (PF) > 0.95
Driver Efficiency > 90%
IP Rating IP65
Guarantee 3 years/ 5 Years Warranty
Heat part Aluminum alloy
Fixture size Φ350*H143 mm
Packing size 410*385*200mm
Fixture Weight 5.6kg

How to install UFO LED High Bay Light?



1. Screw the hook into power supply box, tightly.

2. Pendent chain through hook and lock, then hang the light to ceiling.

Connect the blue and brown line to main supply, and yellow-green lind to ground earth.

Then Done.

Packing:

One high bay in one box, then in K=K carton

Size in 410*385*200mm, G.W in 5.6KG

20'GP can load 840pcs

40'GP can load 1750pcs

40'HQ can load 2150pcs
