100W 150W 200W UFO High Bay
Location:Index--->Product Center >> UFO LED High Bay Light >> 100W 150W 200W UFO High Bay
| Name: | 100W 150W 200W UFO High Bay |
|---|---|
| Input | 100-277V |
| LED | Philips 2835 SMD |
| Efficiency | 160LM/W |
| Driver | Meanwell |
| Warranty | 5 years |
| Certificates | CE RoHS |
| Lead Time | 7-15days |
Product Detail

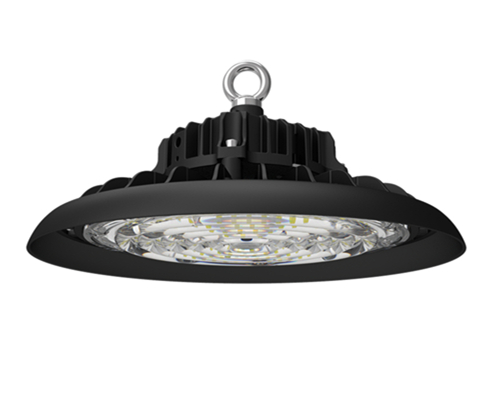

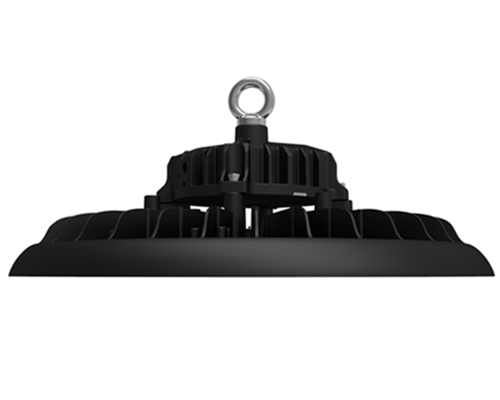

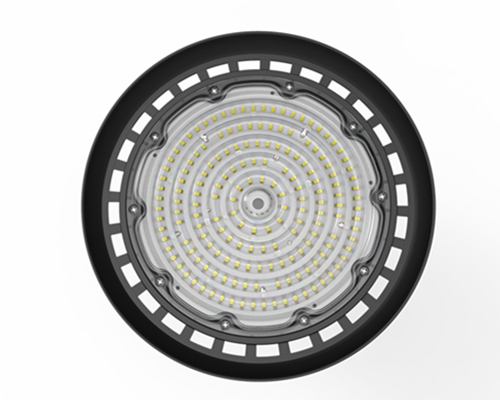

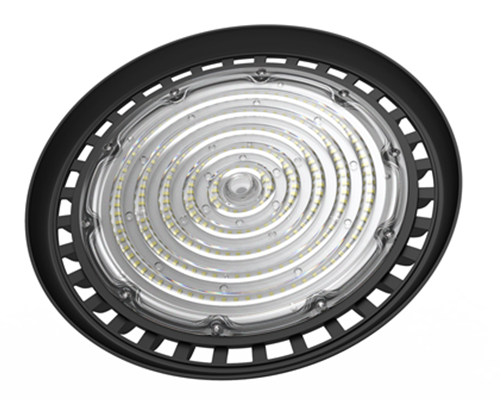

UFO LED high bay 100W 150W 200W
UFO LED high bay lights are welcomed as general lighting, as small size and high output, and most important is that, they are supplied at much lower costs compared with the commone type LED high bay fixtures. UFO LED high bay 100W 150W 200W comes with Philips 2835 LED as lighting source and CE or TUV LED driver, as replacement of metal lamp or High Pressure Sodium. They are ideal repalcement of MH / HPS in Large commercial properties, Warehouses,Sports fields, Factory,arenas and so on.
3000K 4000K 5000K and 6000K, optional
Die-casting intergrative housing and 2.0 thermal conductivity coefficient PCB

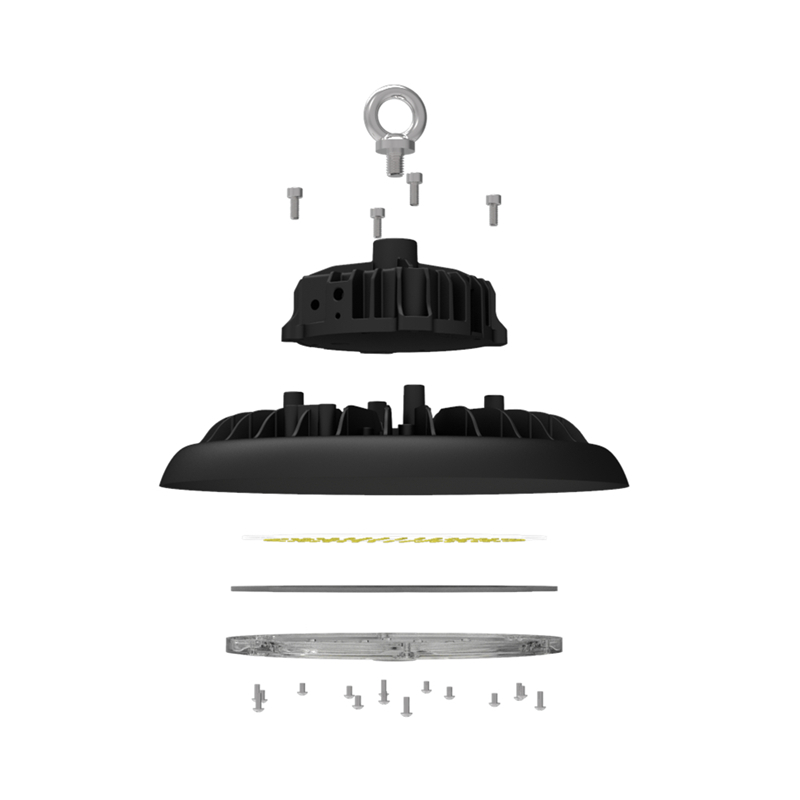

Structure of the UFO high bay
Size of sensor UFO LED High Bay Light
|
Item |
UFO LED high bay 100W 150W 200W |
||
|
Power |
100W |
150W |
200W |
|
Luminous Flux |
16000lm |
24000lm |
32000lm |
|
Equivalent |
HPS 200-300W |
HPS 300-400W |
HPS 500-600W |
|
Input |
100-277VAC/50-60HZ |
||
|
Light Source |
SMD LED 2835, Philips |
||
|
Luminous Efficacy |
160-170 LM/W |
||
|
CRI |
Ra70/80 |
||
|
Operation Temp. |
-40 to +45℃ |
||
|
CCT |
2700K/3000K /4000K /5000K /6000K |
||
|
Life Span |
50,000 hours at 25℃ |
||
|
Dimming |
Dimmable 0-10V |
||
|
Beam Angle |
60° 90° 120° |
||
|
PF |
>0.95 |
||
|
Cover |
Transparent Lens |
||
|
Warranty |
5 Years |
||
How to install UFO LED High Bay Light?
1. Screw the hook into power supply box, tightly.
2. Pendent chain through hook and lock, then hang the light to ceiling.
Connect the blue and brown line to main supply, and yellow-green lind to ground earth.
Then Done.
Packing with One high bay in one box, then in K=K carton
