150W Linear LED High bay lights
Location:Index--->Product Center >> Linear High Bay Lights >> 150W Linear LED High bay lights
Name: | 150W Linear LED High bay lights |
---|---|
Input | AC85V-265V, 50Hz-60Hz |
LED | Philips 3030 |
Driver | Meanwell |
CCT | 2700K-3500K, 4500K-5500K, 6000K-7000K |
Color index | Ra80 |
Lead time | 15days |
Product Detail

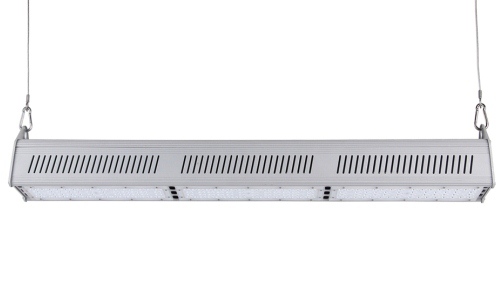

150W Linear LED High bay lights
Linear LED high bay lights with Osram or Philips 3030LED and well know Meanwell LED driver, are designed to replace aging and expensive HID, T5 and T8 light fixtures in commercial settings, like warehouse, Gym, Garage and workshop. They offer a superior and long lifespan of 50,000 hours, and also reduce the electric bills by 50%, as well as low miantance costs.
150W Linear LED high bay lights come with 168pcs 3030 LED and 18,000LM output, as well as long as superior Meanwell LED driver, 5 years guaranteed.
- Die-casting aluminum housing provides thermal management through natural convection
- Long-life LED system coupled with Meanwell driver to deliver over 120 lumens per watt
- High-powered LED technology with CCT of 5000K with 80 CRI
- Operating temperature rating of 0ºF to 104ºF (-18ºC to 40ºC)
- 5-year limited system warranty standard
- Mounting options include V-hook and chain(included), pendant (optional)
Full angles in 30°/60°/90°/30*70°/60*90°/60*120°/80*155°, for your options
Lense in 60*120°/80*155°, suit for advertising board
Lense in 60°/90°, suit for workshop or warehouse on ceiling
Lense in 30°/60°/90°, suit for tunnels

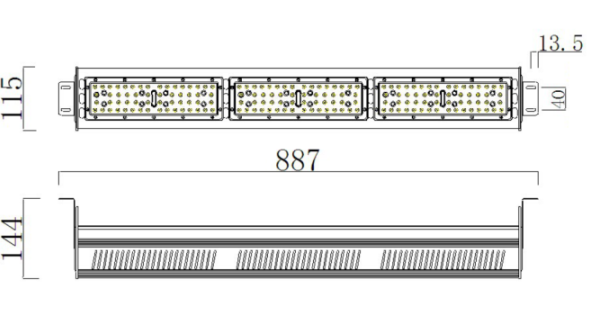

Demansion in mm of the high bay lights

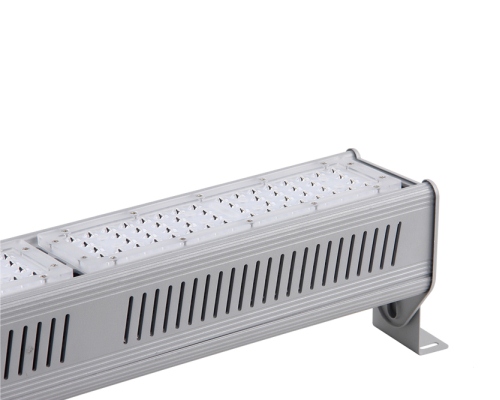

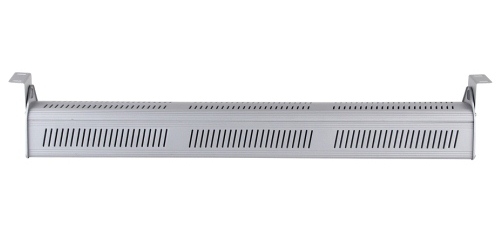

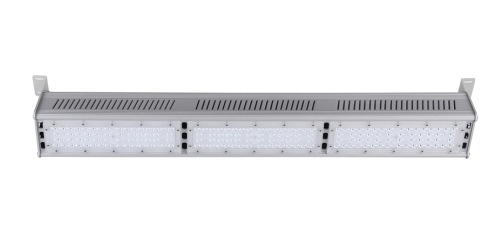

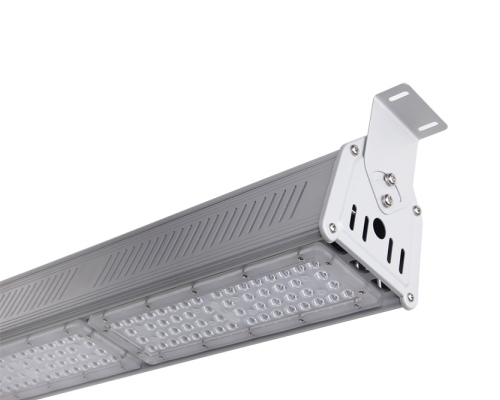

Details of the light
Item |
150W Linear ED High Bay Light |
Operating Voltage |
AC85-265V |
Luminous Flux |
18,000LM |
LED Luminous Efficiency |
120-130lm/w |
CRI |
Ra> 80 |
CCT |
4000/5000/6000K |
Beam angle |
30°/60°/90°/30*70°/60*90°/60*120°/80*155° |
Operating Temperature |
-40ºC to 50ºC |
Operating Humidity |
10%~90%RH |
Power Factor (PF) |
> 0.97 |
IP Rating |
IP65 |
Guarantee |
5 Years Warranty |
Heat part |
Die-casting aluminum |
Fixture size |
L887*W115*H144 |
Fixture Weight |
4.5KG |
Packing for 150W Linear LED high bay lights:
92*17*20CM, 5.5KG
Linear LED high bays are super nice as generall lighting in Tunnel, warehouse, Gym, Garage and workshop.
