100W Linear LED High Bay Lights

Location:Index--->Product Center >> Linear LED High Bay Lights >> 100W Linear LED High Bay Lights

Name:100W Linear LED High Bay Lights
InputAC85V-265V, 50Hz-60Hz
LEDOsram 3030
DriverMeanwell
CCT2700K-3500K, 4500K-5500K, 6000K-7000K
Color indexRa80
Lead time15days

Product Detail

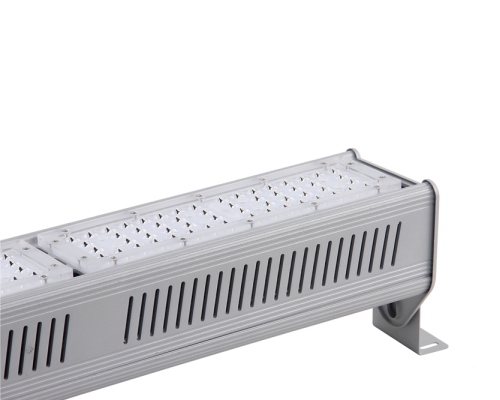

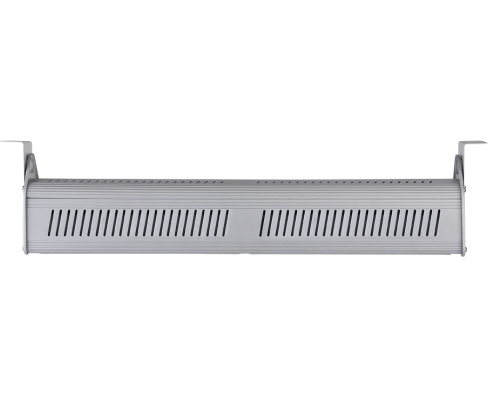

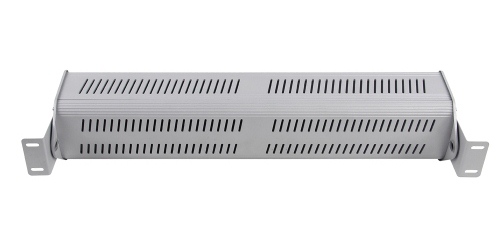

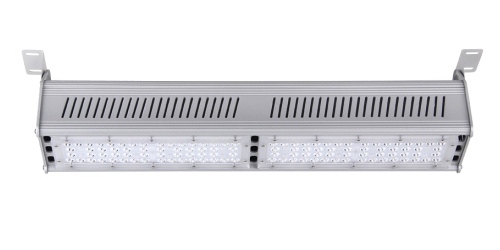

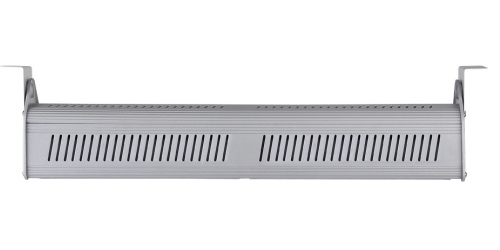

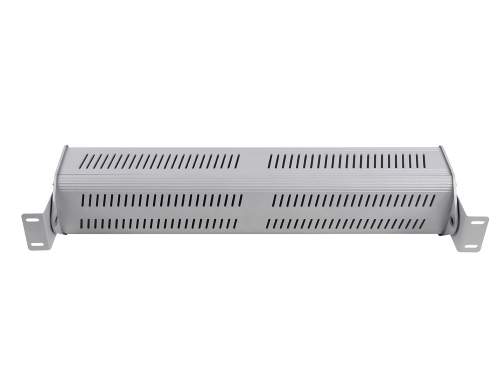

100W Linear LED High Bay Lights


Linear LED high bay lights with Osram or Philips 3030LED and well know Meanwell LED driver, are designed to replace aging and expensive HID, T5 and T8 light fixtures in commercial settings, like warehouse, Gym, Garage and workshop. They offer a superior and long lifespan of 50,000 hours, and also reduce the electric bills by 50%, as well as low miantance costs.



100W Linear LED high bay lights come with 112pcs 3030 LED and 12,000LM output, as well as long as superior Meanwell LED driver, 5 years guaranteed.



  1. Die-casting aluminum housing provides thermal management through natural convection
  2. Long-life LED system coupled with Meanwell driver to deliver over 120 lumens per watt
  3. High-powered LED technology with CCT of 5000K with 80 CRI
  4. Operating temperature rating of 0ºF to 104ºF (-18ºC to 40ºC)
  5. 5-year limited system warranty standard

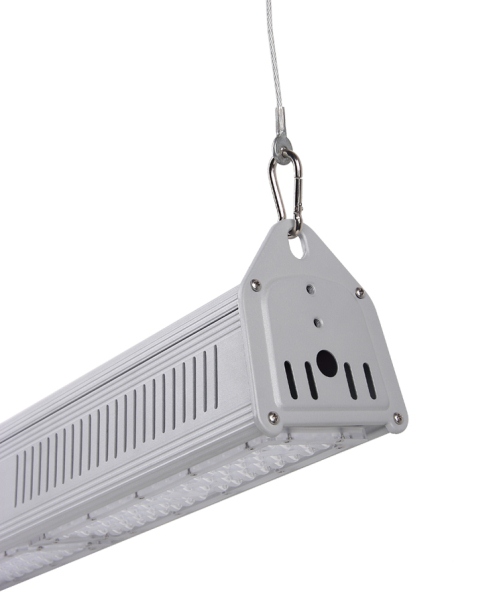

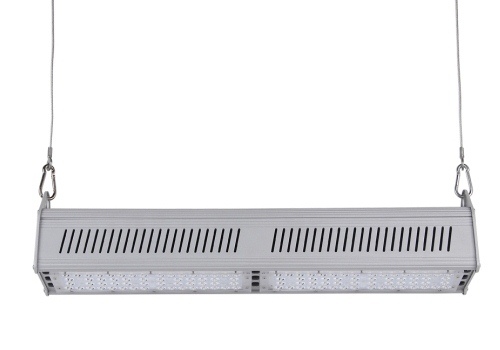

  6. Mounting options include V-hook and chain(included), pendant (optional)

Full angles in 30°/60°/90°/30*70°/60*90°/60*120°/80*155°, for your options

Lense in 60*120°/80*155°, suit for advertising board

Lense in 60°/90°, suit for workshop or warehouse on ceiling

Lense in  30°/60°/90°, suit for tunnels

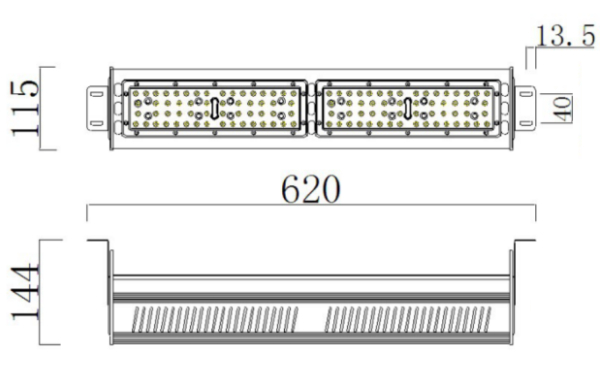

Demansion in mm of the high bay lights

Details of the light

Item

100W Linear ED High Bay Light

Operating Voltage

AC85-265V

Luminous Flux

12,000LM

LED Luminous Efficiency

120-130lm/w

CRI

Ra> 80

CCT

4000/5000/6000K

Beam angle

30°/60°/90°/30*70°/60*90°/60*120°/80*155°

Operating Temperature

-40ºC to 50ºC

Operating Humidity

10%~90%RH

Power Factor (PF)

> 0.97

IP Rating

IP65

Guarantee

5 Years Warranty

Heat part

Die-casting aluminum

Fixture size

L620*W115*H144

Fixture Weight

3.8KG

Packing for 100W Linear LED high bay lights:

65*16.5*19.5CM, 4.5KG

Linear LED high bays are super nice as generall lighting in Tunnel, warehouse, Gym, Garage and workshop.
