2727 12W 15W LED Linear Wall Washer

Location:Index--->Product Center >> Linear Wall Washers >> 2727 12W 15W LED Linear Wall Washer

Product Detail

2727 12W 15W LED Linear Wall Washer

Prime 12W 15W LED Linear Wall Washer 27x27mm are available in single colour or RGB, with both static color and colour changing options, with external PWM controller or DMX512 controller as needed. They are Ideally suited to architectural lighting, landscape lighting, garden lighting, wall washing of building facades, billboard lighting, theatres, bridges, hotels, shopping centres, bars and night clubs.



Benifits:

• Energy-efficient by 70%-80% energy-saving
• Even, brilliant lighting effects due to extra narrow, asymmetric or wide optics
• Easy to install and adjustable brackets
• Long lifespan(50, 000H) and Low maintenance costs
• Reduction in CO2 emissions and No risk of mercury emission
• Robust housing equipped with a jet-proof connector for daisy chain connection

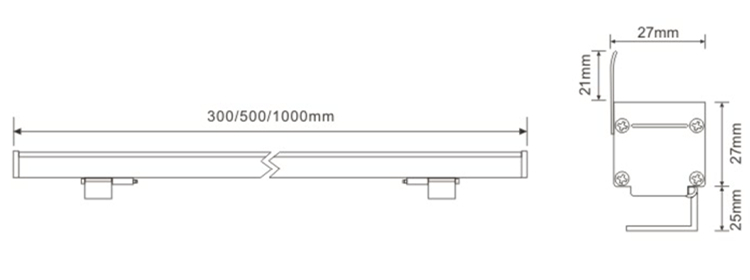

Dimension of the 12W 15W LED Linear Wall Washer 27x27mm

Specifications

Fixure Size: L1000*W27*H27 MM

Power: 12W or 15W

LED: 5050 SMD

Input: DC 24V

Color: Warm White 3000K, Netual White 4000K, White 6000K, Red, Green, Blue, Yellow and RGBW

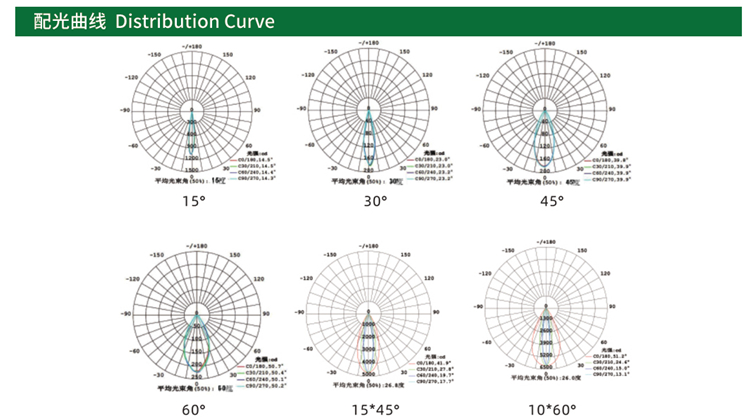

Beam angle: 30/60/120/15*45/10*60°

Material: 6063 Aluminium Alloy+Tempered glass

IP Rating: IP65

Operating Temperature: -20℃ - 40 ℃

Color	Working at	Light source	LED Qty	Power
R/G/B/Y/W	24v	5050LED	48leds	12w
R/G/B/Y/W	24v	5050LED	48leds	15w
RGBW	24v	5050 4IN1	48leds	15w





LED wall washer are avaiable in two control modes, external controlling and internal controlling.

The internal control mode comes with a controller moudle inside housing, and built in automatic changing modes (6modes max.), while the external control needs to work with an external controller or DMX512 system for changing colors and different changing modes.



LED Wall Washers are perfect for feature lighting, providing an amazing colour wash effect to the buildings, bridges and so on.
