6560 48W 72W LED Linear Wall Washer

Location:Index--->Product Center >> Linear Wall Washers >> 6560 48W 72W LED Linear Wall Washer

Name:6560 48W 72W LED Linear Wall Washer
InputAC100-240V, 50Hz-60Hz
LEDUSA CREE XTE
DriverDone
CCT2700K-3500K, 4500K-5500K, 6000K-7000K
Lead time7-12days
Certificate:CE RoHS
Warranty3 years

Product Detail

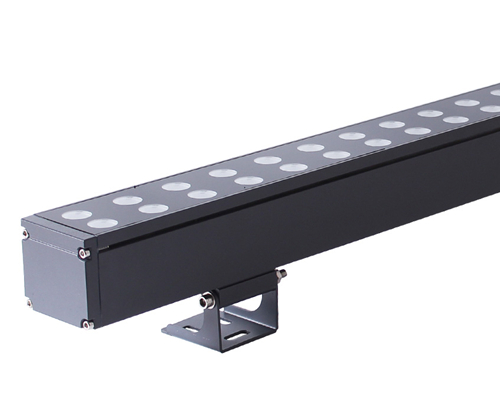

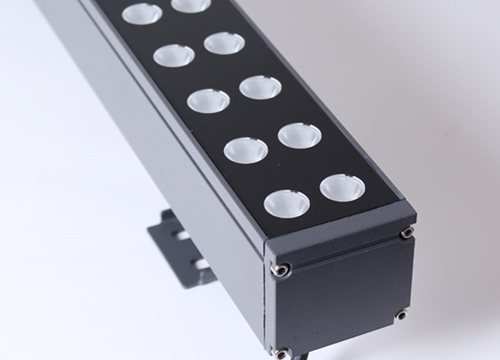

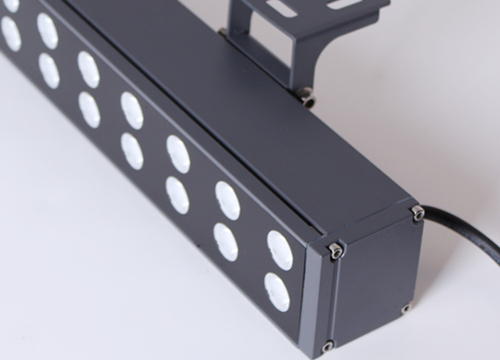

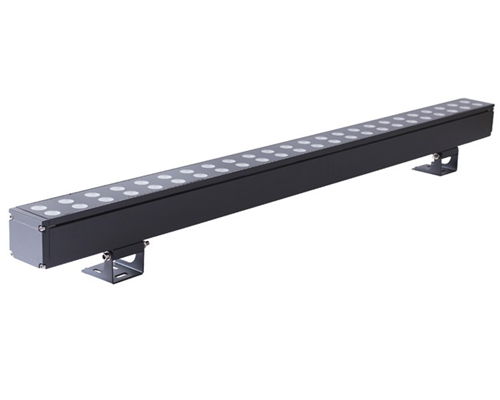

48W 72W LED Linear Wall Washer

Prime 48W 72W LED Linear Wall Washer are available in single colour or RGB, with both static color and colour changing options, with external PWM controller or DMX512 controller as needed. They are Ideally suited to architectural lighting, landscape lighting, garden lighting, wall washing of building facades, billboard lighting, theatres, bridges, hotels, shopping centres, bars and night clubs.



Benifits:

  • Energy-efficient by 70%-80% energy-saving
  • Even, brilliant lighting effects due to extra narrow, asymmetric or wide optics
  • Easy to install and adjustable brackets
  • Long lifespan(50, 000H) and Low maintenance costs
  • Reduction in CO2 emissions and No risk of mercury emission
  • Robust housing equipped with a jet-proof connector for daisy chain connection

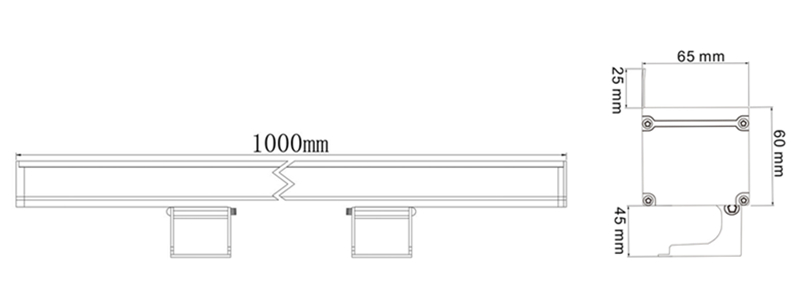

Dimension of the 48W 72W LED Linear Wall Washer

Specifications

Fixure Size: L1000*W65*H60 MM

Power: 48*1W, 72*1W

LED: Osram or Cree LED

Input: DC 24V / 100-240V

Color: Warm White 3000K, Netual White 4000K, White 6000K, Red, Green, Blue, Yellow, RGB and RGBW

Beam angle: 5/10/15/30/45/10*30/10*60°

Material: 6063 Aluminium Alloy+Tempered glass

IP Rating: IP65

Operating Temperature: -20℃ - 40 ℃

Color

Light source

Working at

LED Qty

Power

R/G/B/Y/W

OSRAM/ CREE

24v/ 100-240v

48leds

48w

R/G/B/Y/W

OSRAM/ CREE

24v/ 100-240v

72leds

72w

RGB

3535 3IN1

24v

36leds

54w

RGB

3535 3IN1

24v

48leds

72w

RGBW

3535 4IN1

24v

36leds

72w

RGBW

3535 4IN1

24v

48leds

96w

LED wall washer are avaiable in two control modes, external controlling and internal controlling.

The internal control mode comes with a controller moudle inside housing, and built in automatic changing modes (6modes max.), while the external control needs to work with an external controller or DMX512 system for changing colors and different changing modes.



LED Wall Washers are perfect for feature lighting, providing an amazing colour wash effect to the buildings, bridges and so on.
