3633 18W 24W 36W LED Linear Wall Washer

Location:Index--->Product Center >> Linear Wall Washers >> 3633 18W 24W 36W LED Linear Wall Washer

Product Detail

18W 24W 36W LED Linear Wall Washer

Prime 18W 24W 36W LED Linear Wall Washer are available in single colour or RGB, with both static color and colour changing options, with external PWM controller or DMX512 controller as needed. They are Ideally suited to architectural lighting, landscape lighting, garden lighting, wall washing of building facades, billboard lighting, theatres, bridges, hotels, shopping centres, bars and night clubs.



Benifits:

• Energy-efficient by 70%-80% energy-saving
• Even, brilliant lighting effects due to extra narrow, asymmetric or wide optics
• Easy to install and adjustable brackets
• Long lifespan(50, 000H) and Low maintenance costs
• Reduction in CO2 emissions and No risk of mercury emission

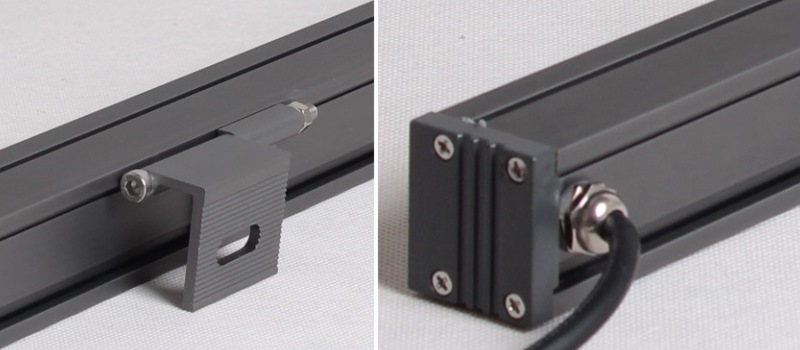

• Robust housing equipped with a jet-proof connector for daisy chain connection

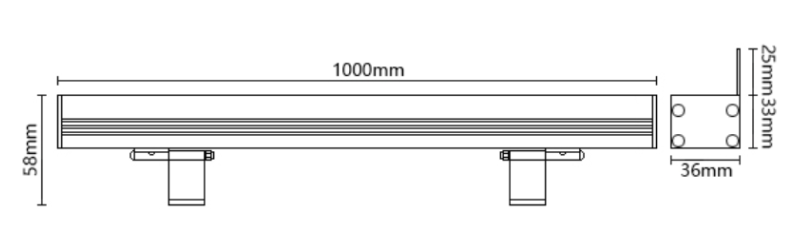

Dimension of the 18W 24W 36W LED Linear Wall Washer

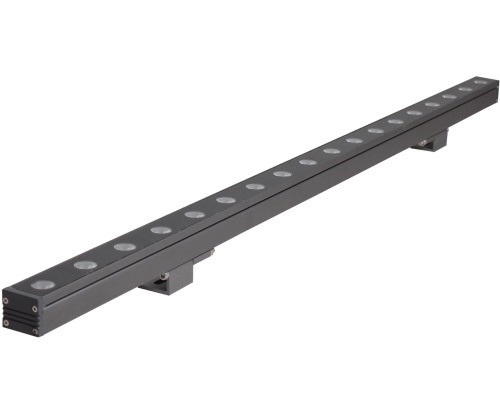

18W LED Linear Wall Washer

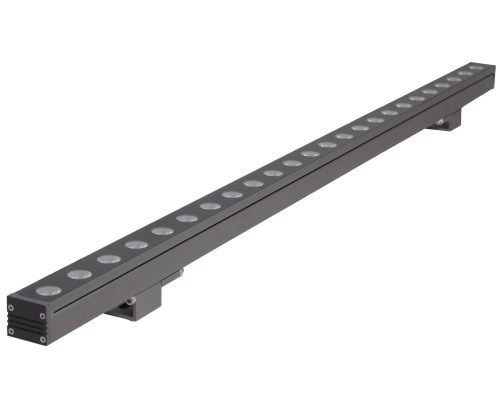

24W LED Linear Wall Washer

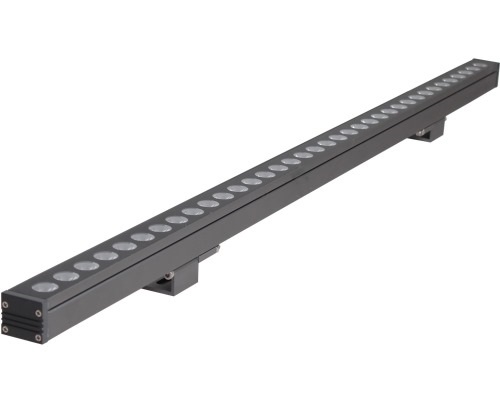

36W LED Linear Wall Washer

Specifications

Fixure Size: L1000*W36*H33 MM

Power: 18*1W, 24*1W or 36*1W, RGB 24W/36W and RGBW 4in1 36W/48W

LED: Osram or Cree LED

Input: DC 24V

Color: Warm White 3000K, Netual White 4000K, White 6000K, Red, Green, Blue, Yellow, RGB and RGBW

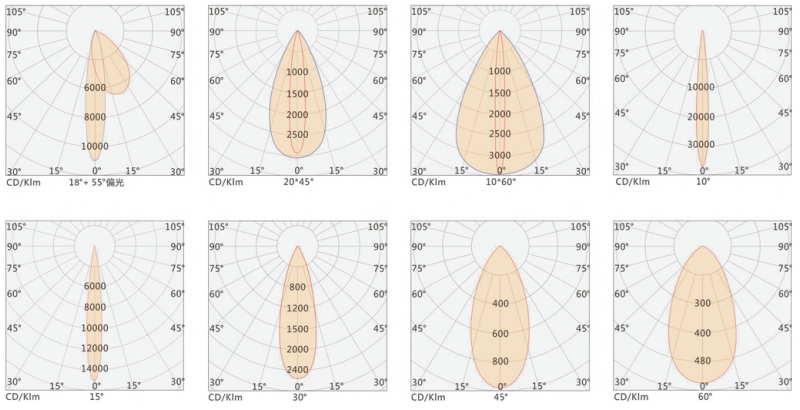

Beam angle: 5/10/15/30/45/10*30/10*60°

Material: 6063 Aluminium Alloy+Tempered glass

IP Rating: IP65

Operating Temperature: -20℃ - 40 ℃

Color	Working at	Light source	LED Qty	Power
R/G/B/Y/W	24v	OSRAM/ CREE	18leds	18w
R/G/B/Y/W	24v	OSRAM/ CREE	24leds	24w
R/G/B/Y/W	24v	OSRAM/ CREE	36leds	36w
RGB	24v	3535 3IN1	18leds	24w
RGB	24v	3535 3IN1	24leds	36w
RGBW	24v	3535 4IN1	18leds	36w
RGBW	24v	3535 4IN1	24leds	48w

LED wall washer are avaiable in two control modes, external controlling and internal controlling.

The internal control mode comes with a controller moudle inside housing, and built in automatic changing modes (6modes max.), while the external control needs to work with an external controller or DMX512 system for changing colors and different changing modes.

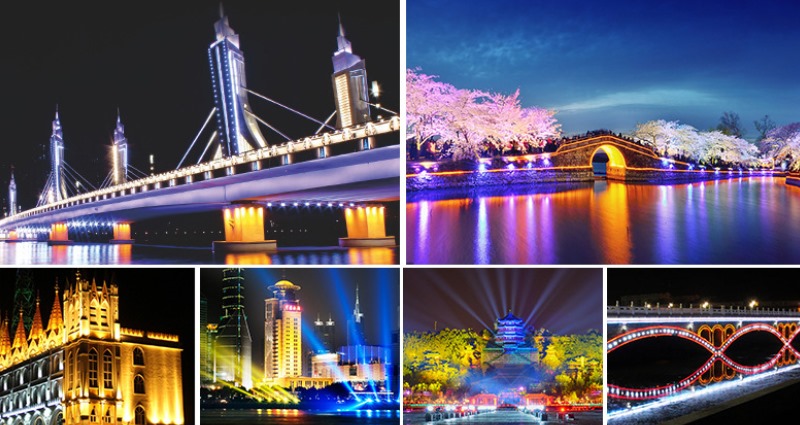

LED Wall Washers are perfect for feature lighting, providing an amazing colour wash effect to the buildings, bridges and so on.
