1200W LED Sports lighting

Location:Index--->Product Center >> LED Sports lighting >> 1200W LED Sports lighting

Name:1200W LED Sports lighting
InputAC100-277V, 50Hz-60Hz
LEDPhilips 5050LED
DriverMeanwell
CCT2700K-3500K, 4500K-5500K, 6000K-7000K
Color indexRa80
Lead time7-12ays
Warranty5 years

Product Detail

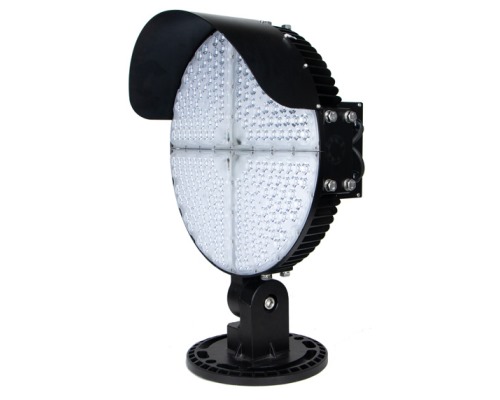

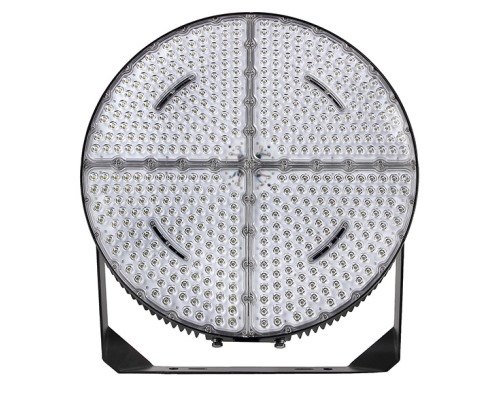

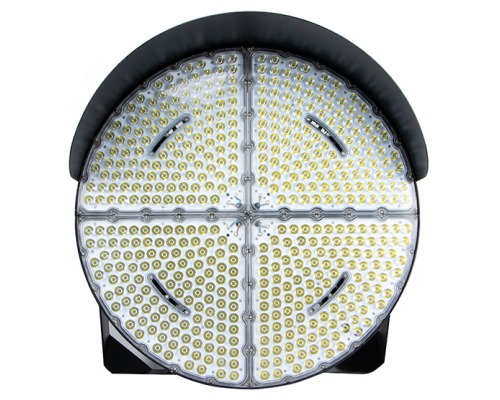

1200W LED Sports lighting

The series LED sports lighting is a compact and high performance floodlight designed for asymmetrical light distribution whilst minimising spill light above the horizontal plane.  It is ideal for urban and commercial applications including sports and retail lighting, and also used for lighting car yards, car parks and tennis courts where the prevention of spill light on roads and adjoining properties is desirable. LED Sports lighting 1200W comes with 480pcs Philips 5050 LED as lighting source and Meanwell LED driver, as replacement of 2000-2500W metal lamp or High Pressure Sodium with 140-150LPW output, It is a great repalcement of MH / HPS floodlighting fixtures in Large commercial properties, Warehouses,Sports fields, Factory,arenas and so on.

Features:

  • 3000K, 4000K, 5000K and 6000K for options
  • Compact and high performance floodlight with Philips 5050 LED, 140-150LPW
  • Asymmetrical light distribution at 10, 25 and 60deg. beam angle for options
  • Minimises glare and intrusive spill light
  • Durable Meanwell LED driver with 5 years warranty
  • IP65 for outdoor applications

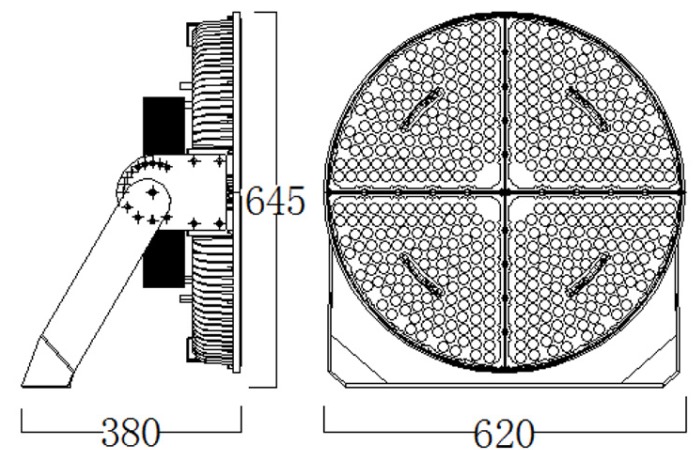

Demansion of the 1000W 1200W LED sports lighting

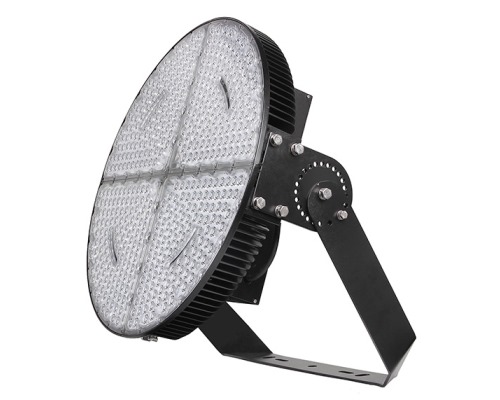

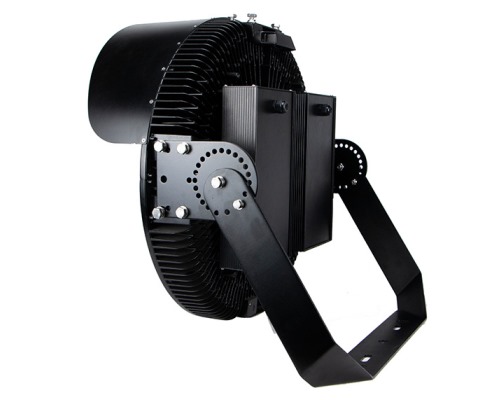

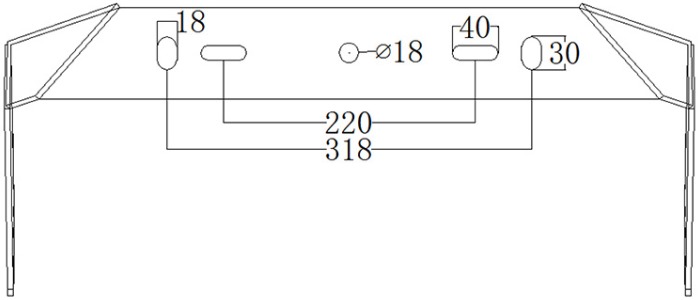

Installing bracket

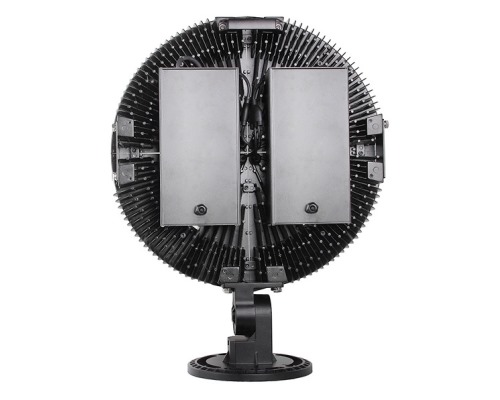

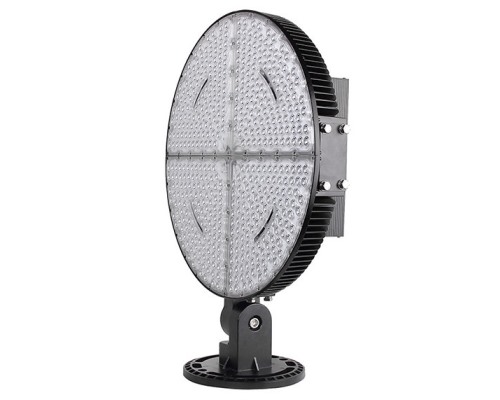

Adjustable holder is also available as well as the bracket

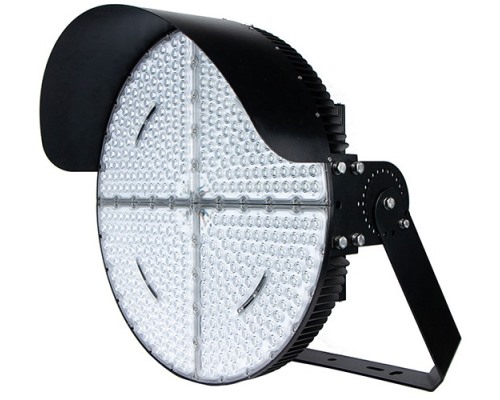

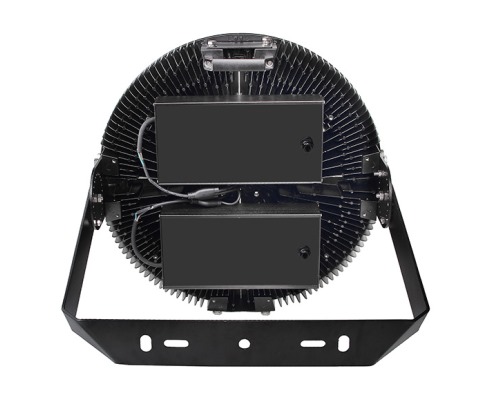

Details of the sports lights

Item

1000W 1200W LED Sports lighting

LED Power

1000W/ 1200W

LED QTY

480 PCS

LED Size

650x117.6x599.4mm

Net weight

29Kg

Light Lighting efficiency

140-150lm/W

Input Voltage

AC100V-277V VAC, 50/60 Hz

LED Chips

Philips 5050LED

Power Factor

0.95

Color Temperature

3000K, 4000K, 5000K, 6000K

Color Rendering Index

Ra70/80

Beam angle

10°25°60°

Illuminance Design

LED+lens+glass

LED Junction Temperature

≤70 (@ Ta=30)

Working Temperature

-25  45

Storage Temperature

-25  65

IP/IK Rating

IP65/IK08

Life-span

>50000H

warranty

5years
