200W LED high bay light

Location:Index--->Product Center >> LED High Bay Light >> 200W LED high bay light

Name:200W LED high bay light
Place of Origin:Guangdong,China
Input:AC85V-265V, 50Hz-60Hz
LED:BridegeLux LED
Driver:Mean well
Warranty:3years
Certificate:CE RoHS
Price Term:EXW, FOB
Payment By:T/T, Paypal, WU
Delivery Date:7-12days

Product Detail

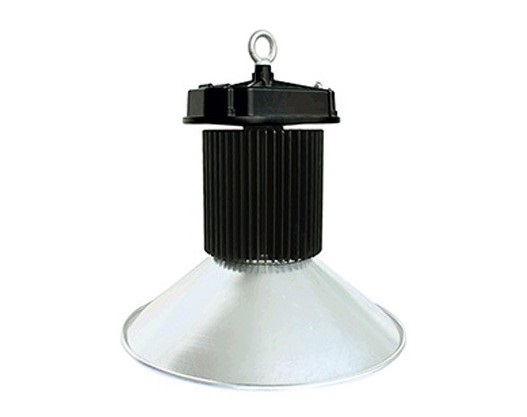

200W LED High Bay Light

200W LED high bay light, with USA high power BridgeLux LEDs and Mean Well Drivers, are ideal for Commercial and Industrial applications, like shops, warehouses, manufacturing workshops, ballrooms and or retail areas.


20,000LM output, equivalent to a 450W metal lamp or High Pressure Sodium

The 200W LED High Bay lights can be fitted with different reflector shields, like 45, 90 and 120degree.

USA high power BridgeLux LEDs for the LED high bay lights

USA Bridgelux COB LED, 45mil with double gold wires, to ensure longer lifespan and standing quality



Mean Well Drivers for the LED high bay lights, CE and UL approved
Features:

1. Exceptional energy saving compared to conventional HID/HPS
2. Lower power, higher efficiency
3. Crisp white light
4. Longer life time of 50,000hours, low maintenance costs
5. Environmental friendly: Lead and mercury free
6. Excellent heat sink design with low temp
7. Compact, lightweight and stylish design
8. IP54, water resistant and dust proof

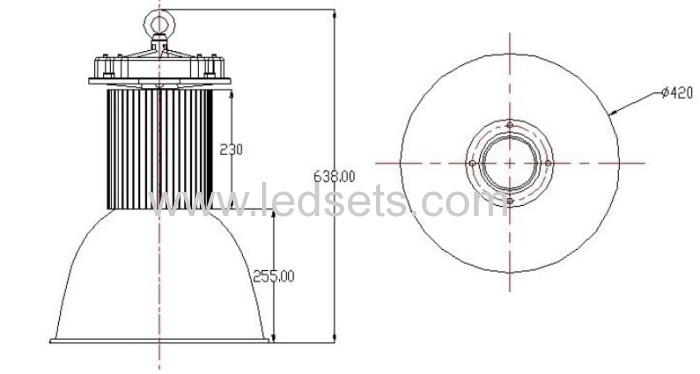

size of 200W LED High Bay Lights

200W LED High Bay Light

Input

AC85V-265V

Frequency

50Hz-60Hz

LEDworking voltage

DC30-36V

LED

BridegeLuxLED, One

LEDpower consumption

200W

Totalpower consumption

216W

LEDlamp output lumen

100-105LM/W

CCT

Warmwhite

2700K-3500K

Purewhite

4500K-5500K

Coolwhite

6000K-7000K

Color

index

Warmwhite

Ra70

white

Ra70

LEDlamp output lumens

Warmwhite

20,000LM

Purewhite

21,000LM

Coolwhite

20,600LM

Totalharmonic distortion

≤9%

PF

0.98

Lampefficiency

90%

Illuminanceuniformity

0.7

BeamAngle

45 deg.

Averageilluminance

Height6M

544.2LUX

Height8M

305.4LUX

Height10M

195.3LUX

Illuminancearea

Height6M

¢9.5M Round

Height8M

¢11M Round

Height10M

¢12.5M Round

Lightdistribution

Symmetric/ Circle spot

Lightdesign

LED+Reflector

LEDjunction temperature

≤70

Workenvironment

-40_+45

Storageenvironment

-40_+65

Protectionclass

IP54

LEDlifespan

50,000hrs

PSU

connection

Brown

L(live line)

Blue

N(null line)

Yellowor Green

G(ground line)

Heatsink color

Blackand Silver

Certificates

CE/RoHS

N.W/G.W(Without reflector)

9.88Kg/10.98Kg

PackingCM (Without reflector)

29.8*24.6*46.7

Installation Instruction:
200W LED High Bay Lights
1. AC85-265V, 50-60Hz input.
2. Handling with care.
3. Tighten the rings (rings for M20 thread).
4. Put hook inside the rings slightly.
5. Ensure that the working environment is within the specifid temperature range.
6. Prevent electric leakage during installation.
7. Adopt appropriate waterproof measures for the external power cord.
8. Don't break any fire rules and regulations with unconventional usage of the lamp.
9. Please proceed to the installation with a professional electrician.
10. Reflector installation:
(1). Loosen screw "A" on the heat sink.
(2). Fix reflector with the screw correctly.
(3). Lock screw.

Maintenance Tips:

1.Turn off switch before any acts.
2.Clear lamp lens with dry rag, clean lens leads good illumination.
3.Clear dust on heat-sinking, to keep good heat dissipation performance
4.Open the driver/power supply box with a screw driver and take the driver out, When replace a power supply, and Make sure to plug the new driver with the right connection. (L-Live line with brown color wire, N-Null line with blue color wire, G-ground line with yellow or green color wire).
