200W UFO LED high bay light

Location:Index--->Product Center >> UFO LED High Bay Light >> 200W UFO LED high bay light

Product Detail

200W UFO LED High Bay Light

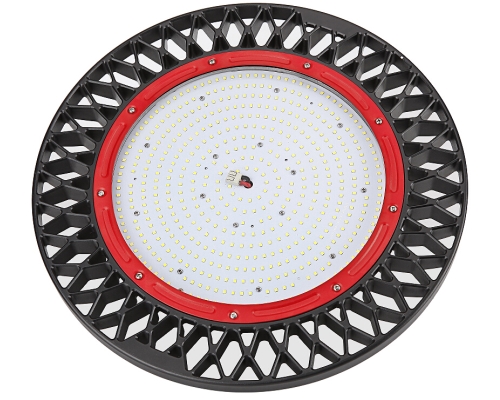

Replacement of 600W metal lamp or High Pressure Sodium with 200W UFO LED high bay light and 26,000LM output, which comes with 400pcs Philips 3030 LED as lighting source and CE or TUV LED driver. They are ideal repalcement of MH / HPS in Large commercial properties, Warehouses,Sports fields, Factory,arenas and so on.

4000K 5000K and 6000K, optional

UFO LED high bay lights are welcomed as general lighting, as small size and high output, and most important is that, they are supplied at much lower costs compared with the commone type LED high bay fixtures.

Die-casting intergrative housing and 2.0 thermal conductivity coefficient PCB

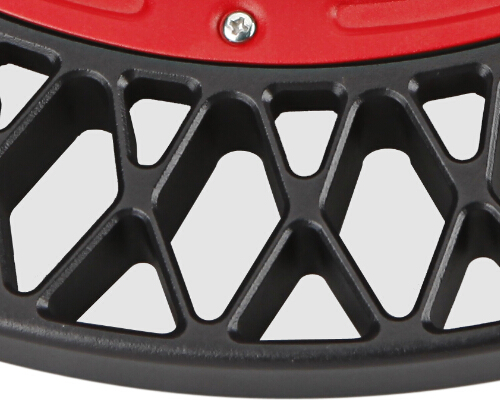

Carefull design with enough dissipation area, Vertically and Horizontally

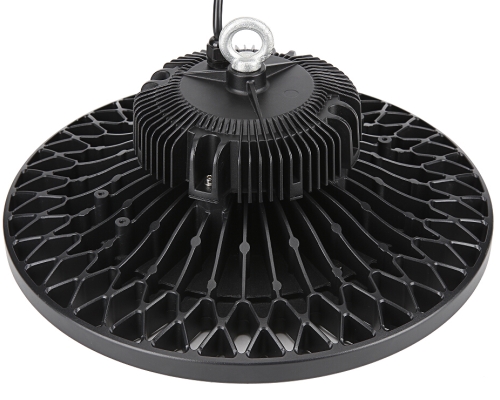

Aluminum as heat dissipation for the driver box, with better performance

Size of 200W UFO LED High Bay Light. Dia. 420*H 149.5mm

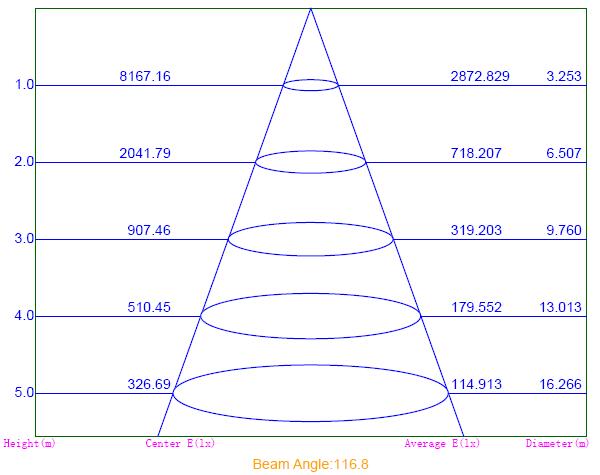

Illuminace distance curve

Item	200W UFO LED High Bay Light
Operating Voltage	AC100-277V
Initial Luminous Flux	26,000LM
Maintain Luminous Flux	25,000LM
LED Luminous Efficiency	125-130lm/w
CRI	Ra> 80
CCT	4000/5000/6000K
Operating Temperature	-40ºC to 50ºC
Operating Humidity	10%~90%RH
Power Factor (PF)	> 0.95
Driver Efficiency	> 90%
IP Rating	IP65
Guarantee	3 years/ 5 Years Warranty
Heat part	Aluminum alloy
Fixture size	Φ420*H149.5 mm
Packing size	480*455*220mm
Fixture Weight	7.5kg

How to install UFO LED High Bay Light?

1. Screw the hook into power supply box, tightly.

2. Pendent chain through hook and lock, then hang the light to ceiling.

Connect the blue and brown line to main supply, and yellow-green lind to ground earth.

Then Done.

Packing:

One high bay in one box, then in K=K carton

Size in 480*455*220mm, G.W in 7.5KG

20'GP can load 560pcs

40'GP can load 1200pcs

40'HQ can load 1450pcs

How to order samples?



1,Samples are available at your costs;

2,You tell us which items, color and quantity you want;

3,We will issue a Performa invoice for the samples order;

4,Production will go, if we do not have the stocks, after your payment by TT /Western Union;

5.Lead time would be about 7-12days;

6,Samples will be sent out by DHL or UPS, as you like.
