80W LED Wall Pack Light

Location:Index--->Product Center >> Osram LED Wall Packs >> 80W LED Wall Pack Light

Name:80W LED Wall Pack Light
Place of Origin:Guangdong,China
Brand Name:Prime LED
Input:100-277V
LED:Samsung or Osram
Drive:Mean well
Warranty:3years
Certificate:CE RoHS
Price Term:EXW, FOB
Payment By:T/T, Paypal, WU
Delivery Date:7-12days
Packing:Neutral
OEM:Acceptable

Product Detail

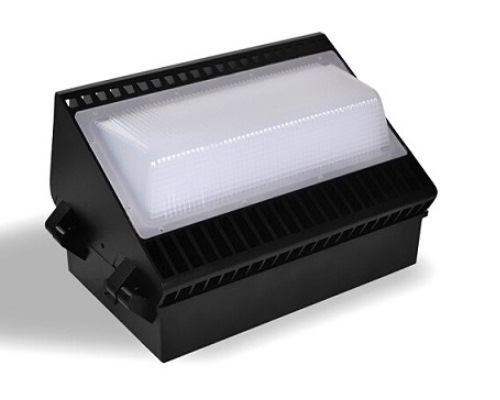

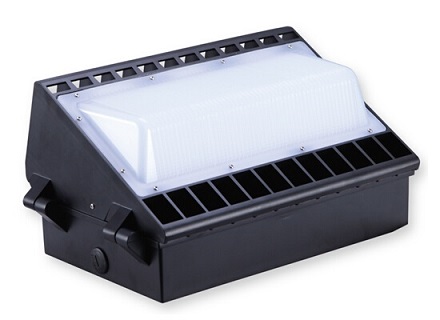

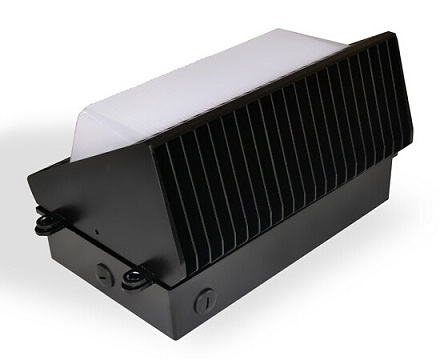

80W LED Wall Pack Light

We offer size by 366*226*196mm 80W LED Wall Pack Light with Meanwell LED driver and Samsung 3030 SMD LED as lighting source, to keep a good quality wall light for you. Our led wall packs are available in mainly three series of LED wall packs, or called led wall light fixtures, 336*226mm series, 362*256mm series and 295*216mm series, power ranges from 20W to 150W.



They are welcomed as wall lighting for Factory workshop, Gym and industrial area.



3000K, 4000K and 5000K, optional



Size by 366*226*196m

Features:

1.Funnelled structure makes better heat releasing with the lights;

2.Optial Lens makes light distribution fully for wall needs;

3.LED driver is separated from LED, which lead easier maintance, if needed;

4.Samsung LED and Meanwell make a quality wall packs

Deatils of the wall lighting fixtures

Item

80W LED Wall Pack Light

Part NO:

PWP-80W40X

Wattage

80W

Lumens

6600LM

LED

80pcs Osram 3030 SMD

Driver

Meanwell

Power Fact

0.9

Beam Angle

100*110

OP. Frequency

50-60HZ

Input Voltage Range

100-277V AC

Luminous Efficiency

80LM/W

Color Rendering Index

70

Housing Color

Black

IP Rating ;

IP65

Warranty

3Years

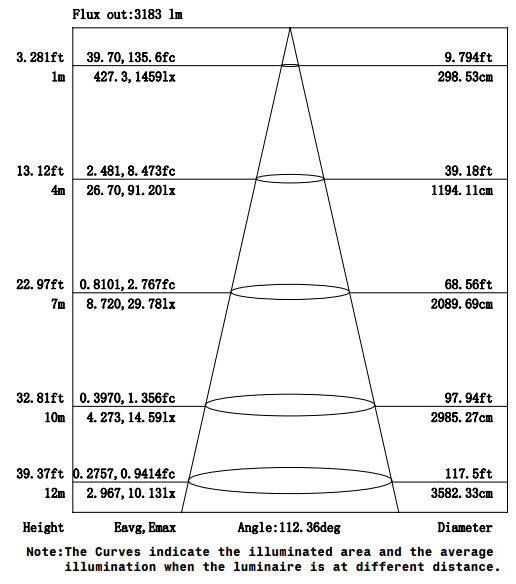

Illumination of the 80W wall lights



Packed One light in a foma, then k=k carton

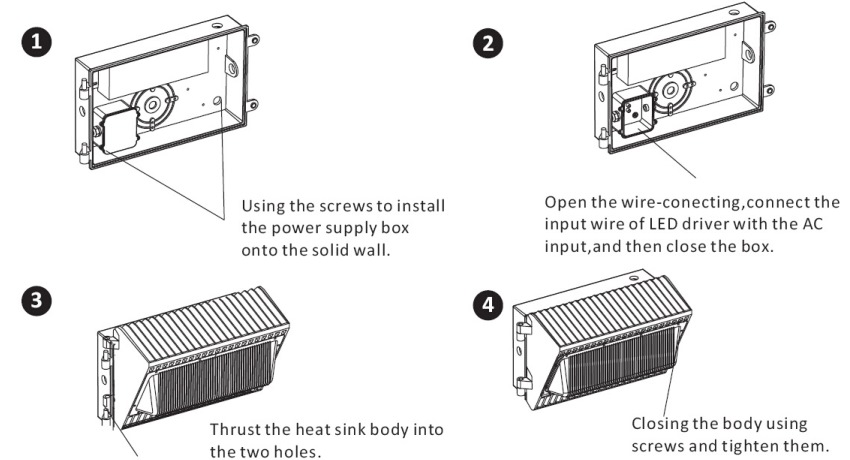

How to install the 80W LED Wall Packs?

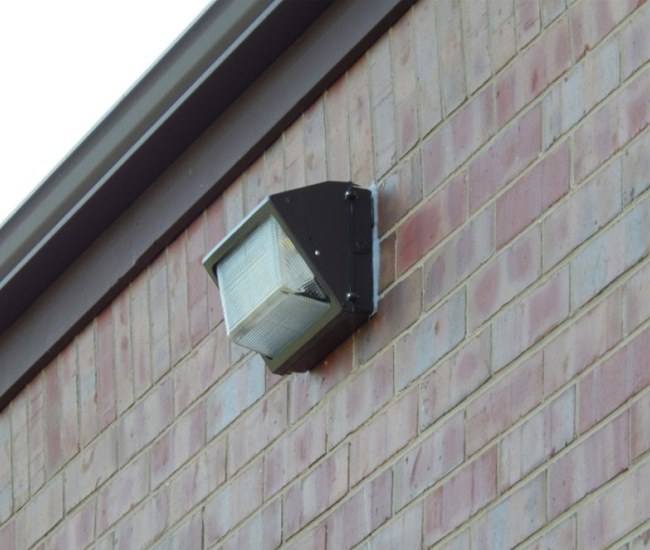

They are welcomed as wall lighting for Factory workshop, Gym and industrial area

Quality Control:

All Prime LED lights after production completed will be under a testing and aging(keep lighting) of 24 hours at least, to ensure their reliability.

A final testing after the long hours testing and aging will be done before the packing, to ensure nothing in wrong and well-working in customer's end.



How to order samples?

1,Samples are available at your costs;

2,You tell us which items, color and quantity you want;

3,We will issue a Performa invoice for the samples order;

4,Production will go, if we do not have the stocks, after your payment by TT /Western Union;

5.Lead time would be about 7-12days;

6,Samples will be sent out by DHL or UPS, as you like
